- Touch screen display with PLC system
- Twist type and RPM can be controlled by touch screen display
- High efficiency and performance with high speed and precision for production
- For opening and closing of door pneumatic system is used
- Less noisy and consumption of power is less
- High efficiency and performance
- Setting of TPM, RPM, direction of twisting and winding tension can be done on screen display
- To remove final package, pneumatic spindle is used
- Long life and maintenance is less
- High productivity with best rope finishing
- To analyze and review, production data can be stored
- Weight and meter set point. And AC drive fault alarm system
- Warning for machine lubrication
- Daily, weekly & monthly production reports

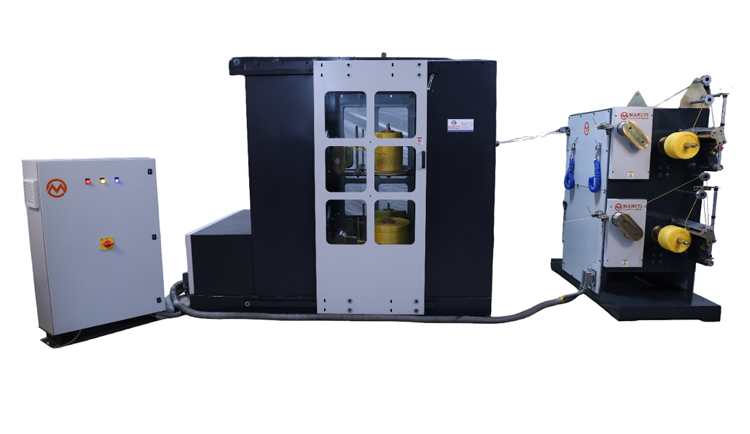

We The Maruti Plastotech Prime Manufacturer & Exporter of Outflow Twister Machine MT/EIF 110 – Baler Twine Making Machine in India/Gujarat. One Of The Best Manufacturer & Supplier Of Outflow Twister Machine OF-110 All Over The World.
| MODEL | MT / OF – 30 |
| DENIER RANGE | 3000 TO 30000 |
| TWIST RANGE | 20 TO 155 |
| Flyer Speed | 2800 (Max.) |
| Feeding Package | Outside Machine |
| TAKE UP CAPACITY | 25 Kg (Max.) |
| LAY | S and Z |
| Power | 17 Kw |
| Weight with panel | 2000 Kg |
Production Capacity
| DENIER | PRODUCTION(Kg/Hr) | TPM | RPM(Max) |
| 3000 | 23.00 | 45 | 2800 |
| 8000 | 40.00 | 38 | 2600 |
| 15000 | 65.00 | 38 | 2100 |
| 23000 | 90.00 | 30 | 2100 |
| 30000 | 98.00 | 30 | 2100 |
Key Features
Optional Features
- Wi-fi connecvity
- With tube spindle
